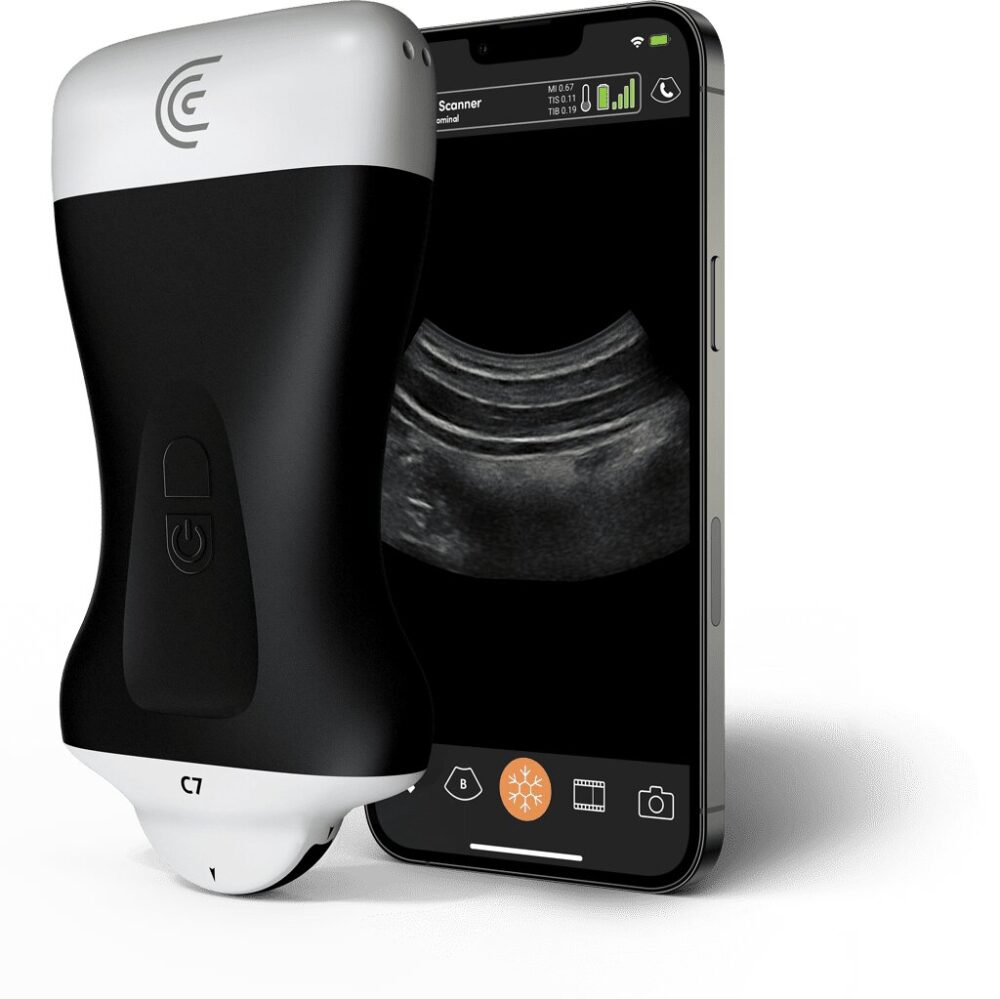

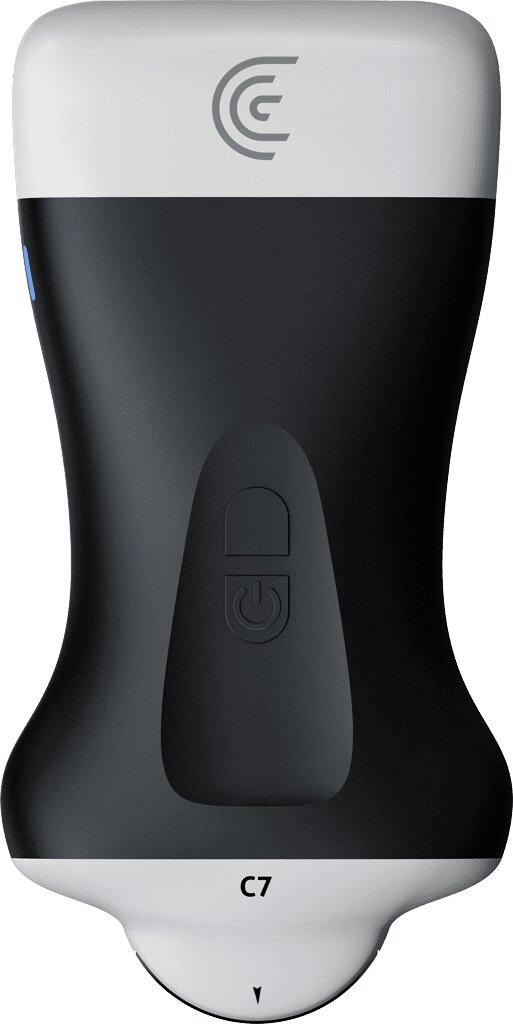

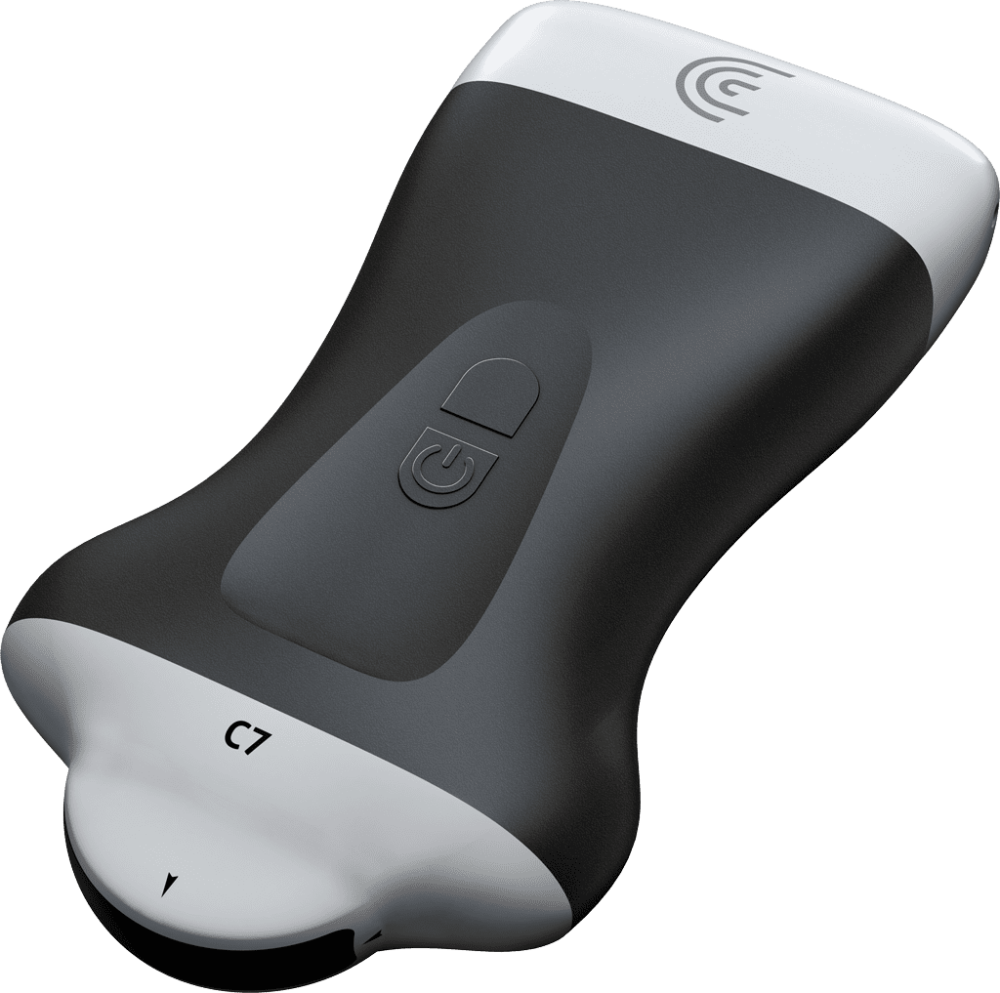

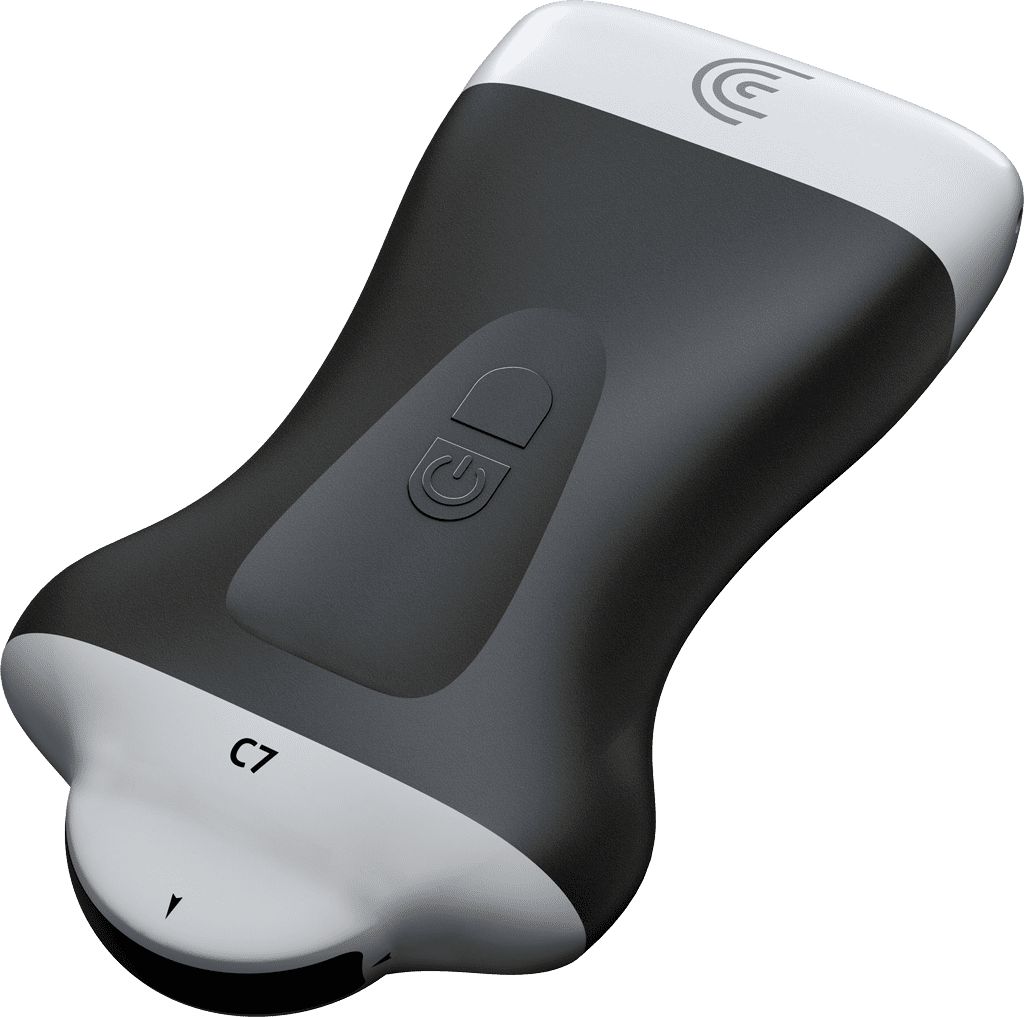

C7HD3 – Microconvex Scanner
- High-Definition Imaging with 192 piezoelectric elements.

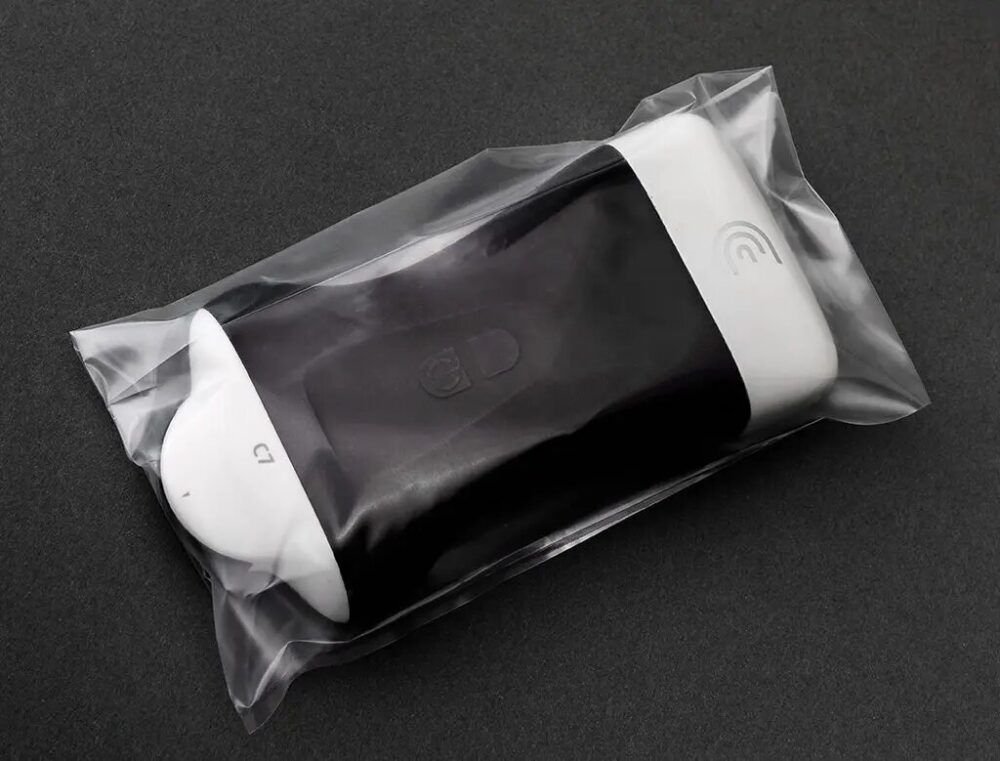

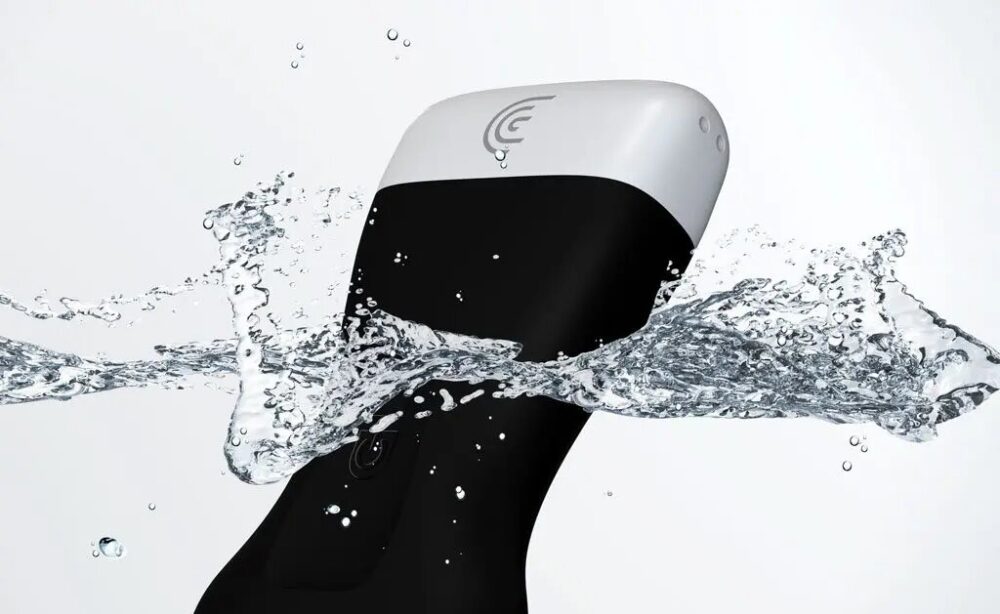

- Wireless Freedom without cords, cleaning, and disinfection are simple and fast.
- AI-Powered for Ease-to-Use automatically delivers the best imaging.
- 30% Smaller & Light-weight
- Frequency: 3-10 MHz
- Max Depth: 18 cm
| Brand | Clarius |
|---|---|
| Product Type | Scanner |
Included
- B-Mode
- M-Mode
- Color Doppler
- Power Doppler
- Unlimited Cloud Storage
- 1 hour personal training
- DICOM
- Unlimited Cloud
Packages
- Pulsed-Waved Doppler
- Elastography
Applications
Ideal for:-
- Abdominal
- Bladder
- Cardiac
- Lung
- MSK
- Pediatrics

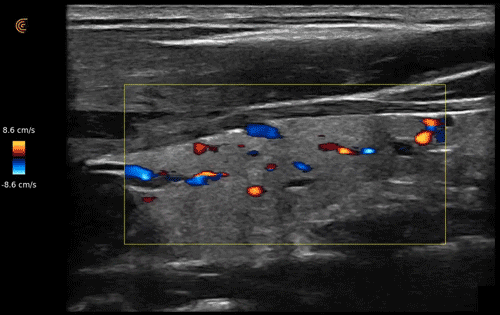

- Small Parts
- Speech Therapy
Physical Characteristics:
- Dimensions: 151 x 76 x 32 mm (5.9 x 3.0 x 1.3in)
- Weight: 289g (0.64lb)
- Programmable Button: 2
Security and Encryption:
- Wi-Fi data channel: TLS 1.2
- Bluetooth: AES128 and RSA4096
- Local Storage: Temporary
- Cloud Storage: Yes with Membership or Advanced Software
- DICOM: Yes with Membership or Advanced Software
Charging and Bootup:
- Scan Time: ~60 min
- Charge Time: ~90 min
- Standby: ~7 days
- Bootup: Platform dependent, generally < 30 seconds
Operating Range:
- Ambient temperatures: between 0°C / 32°F and 40°C / 104°F
- Relative Humidity: between 15% and 90%
- Recommended maximum exam time: 20 minutes

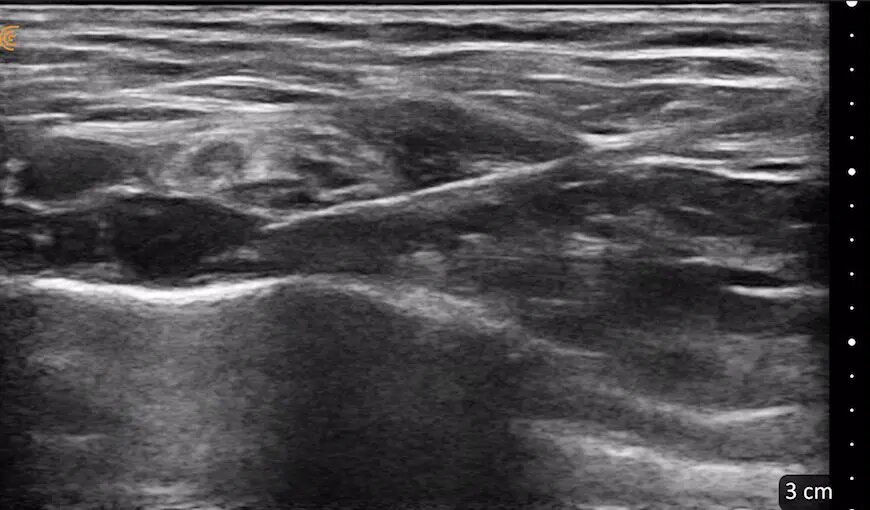

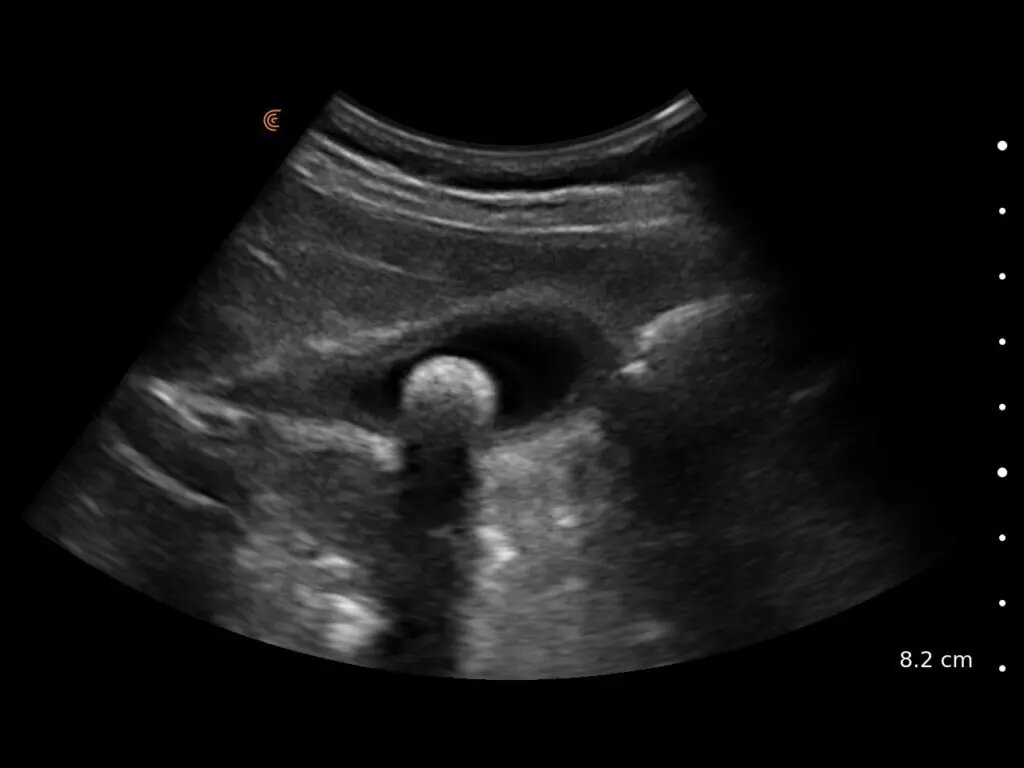

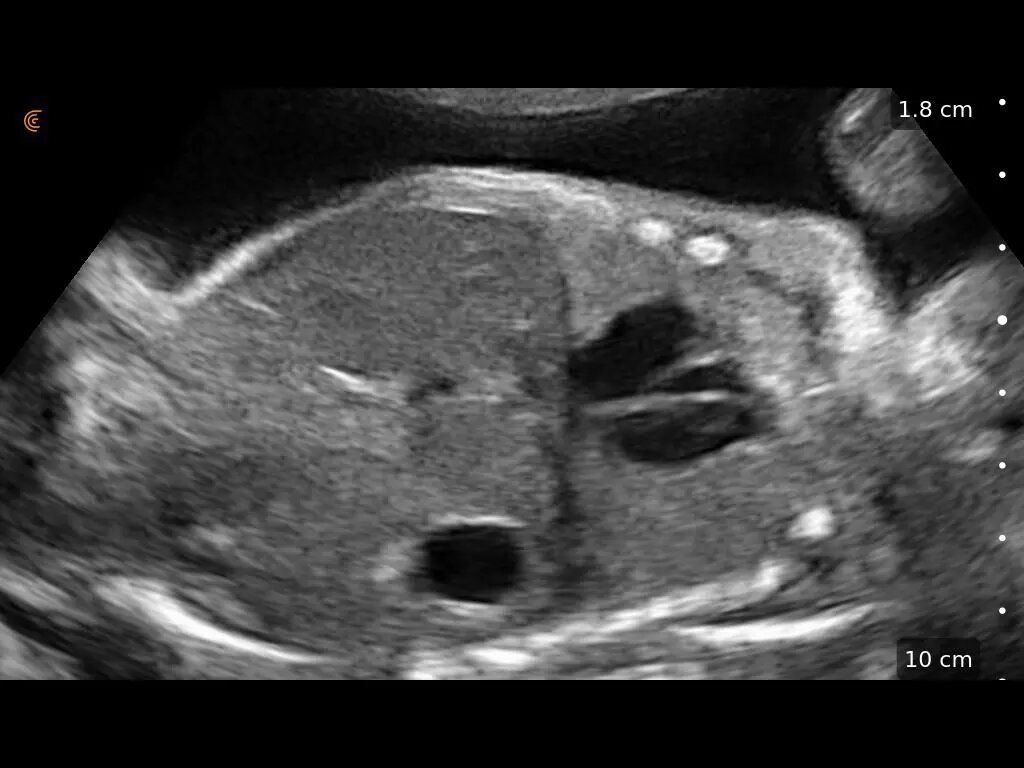

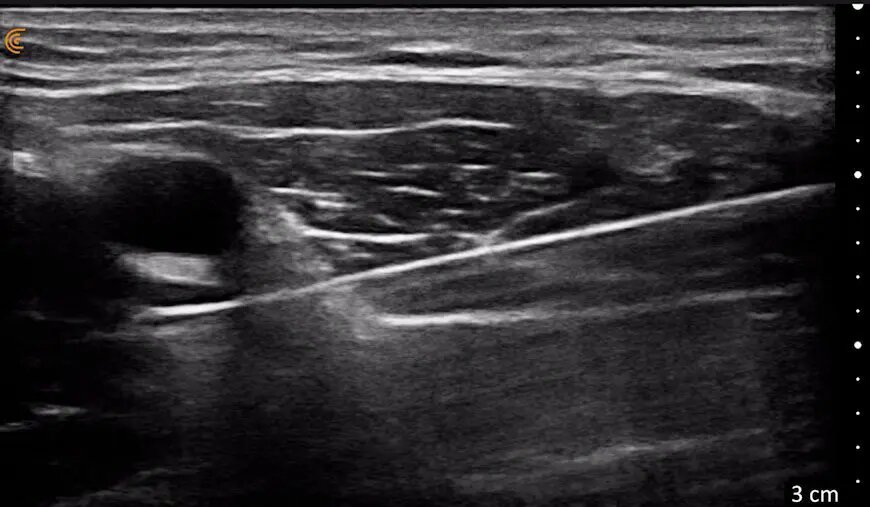

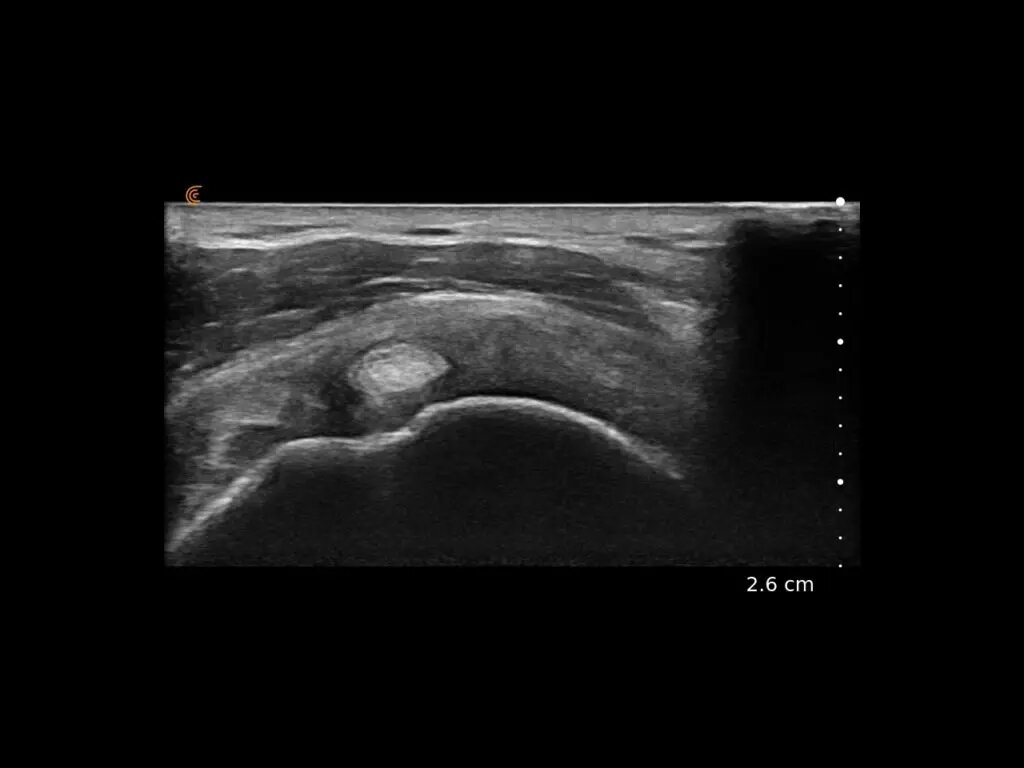

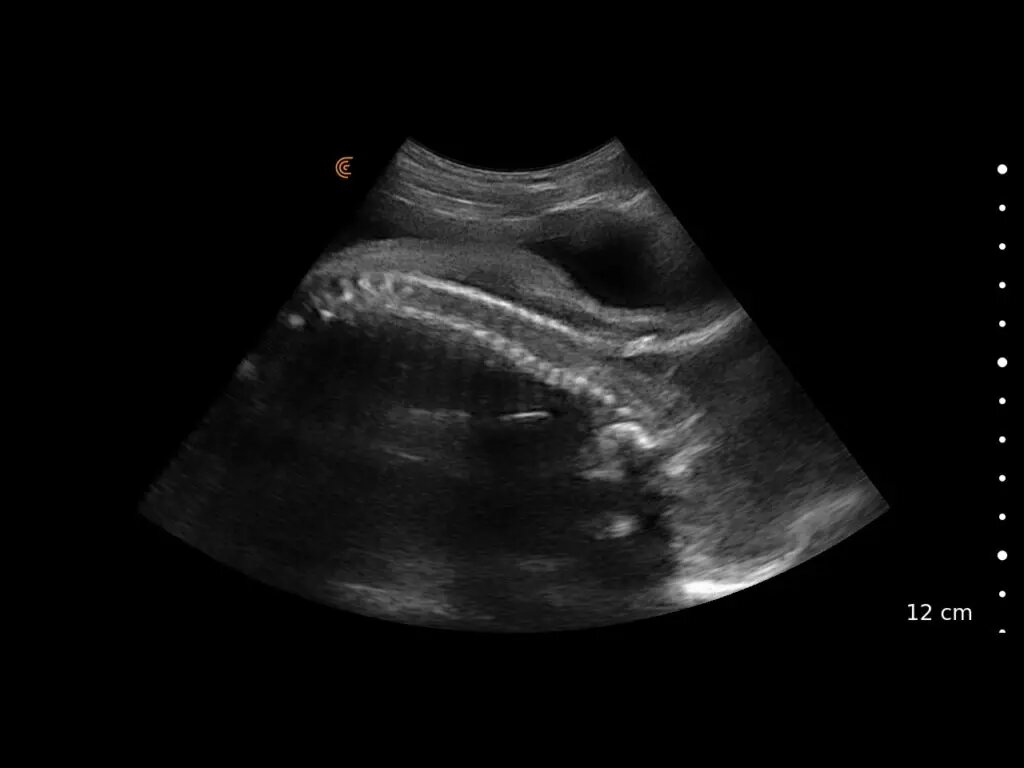

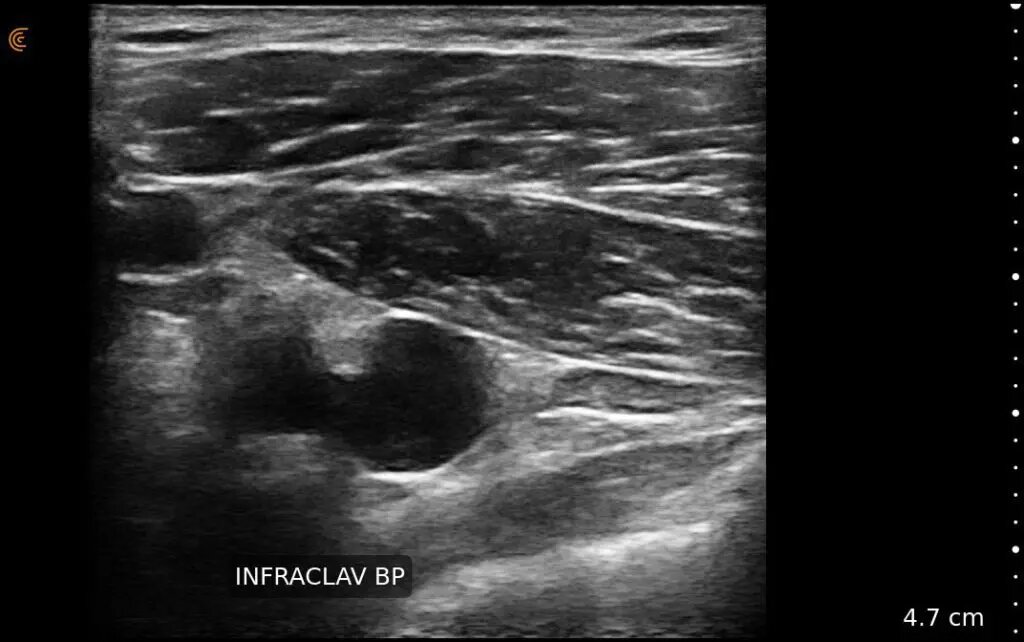

See the Difference Great Image Quality Makes
