D – Heart Automated External Defibrillator

RESCUE SAM is a semi-automatic external defibrillator designed for providing simple and direct voice prompts and indications for a straightforward rescue operation.


It is lightweight and battery-powered for maximum portability. RESCUE SAM is designed to treat Ventricular Fibrillation (VF) and Fast Ventricular Tachycardia (VT).

Product Type

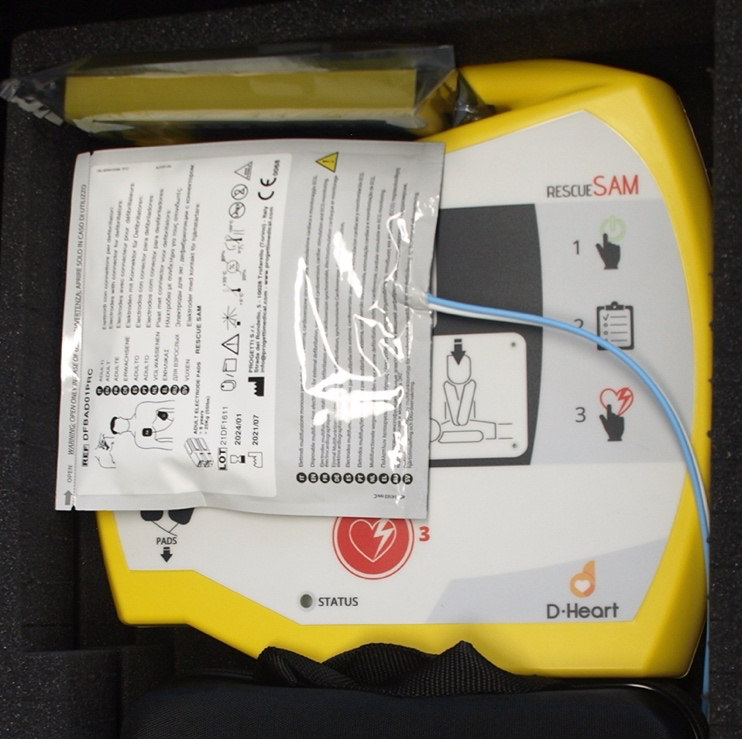

The Rescue SAM defibrillator has been designed to be extremely simple to use so that any member of the public can use the device without any prior CPR or first aid experience. When operating the defibrillator, users are guided through each step of resuscitation with lit-up visual instructions on the main interface together with loud and clear voice prompts. Its onboard ECG scans the rhythm of a patient’s heartbeat before determining whether to deliver a shock or prompt the user to perform CPR.

The main interface features a status light that flashes green, amber, or red intermittently as a quick visual way of routinely checking the defibrillator.


The Rescue SAM is perfect for installation in any public place indoors or out. If installing a defibrillator in a public place, it is always recommended that you install a heated cabinet.

The Rescue SAM is IP54 rated meaning it is protected from dust ingress and water spray from any direction. Why not consider the optional carry case to give the unit further protection?

Technical Specifications

  • Operating mode: Semi-automatic
    Waveform: BTE (Biphasic Exponential Truncated) impedance compensated
    Energy: 200 J fixed
    Charge control: Automatic by software (Arrhythmia Detection System and charging control)
    Charge time: < 8 seconds, typical with a new battery

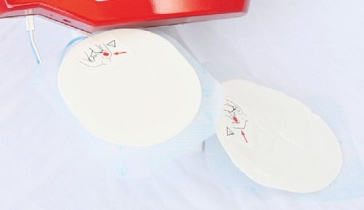

    Shock delivery vector: adult pads in the anterior (Lead II) position or reduced energy pediatric pads in the anterior-posterior position
    Voice instructions: Vocal and optical message guide
    Automatic manual tests: Battery insertion test and daily self-tests

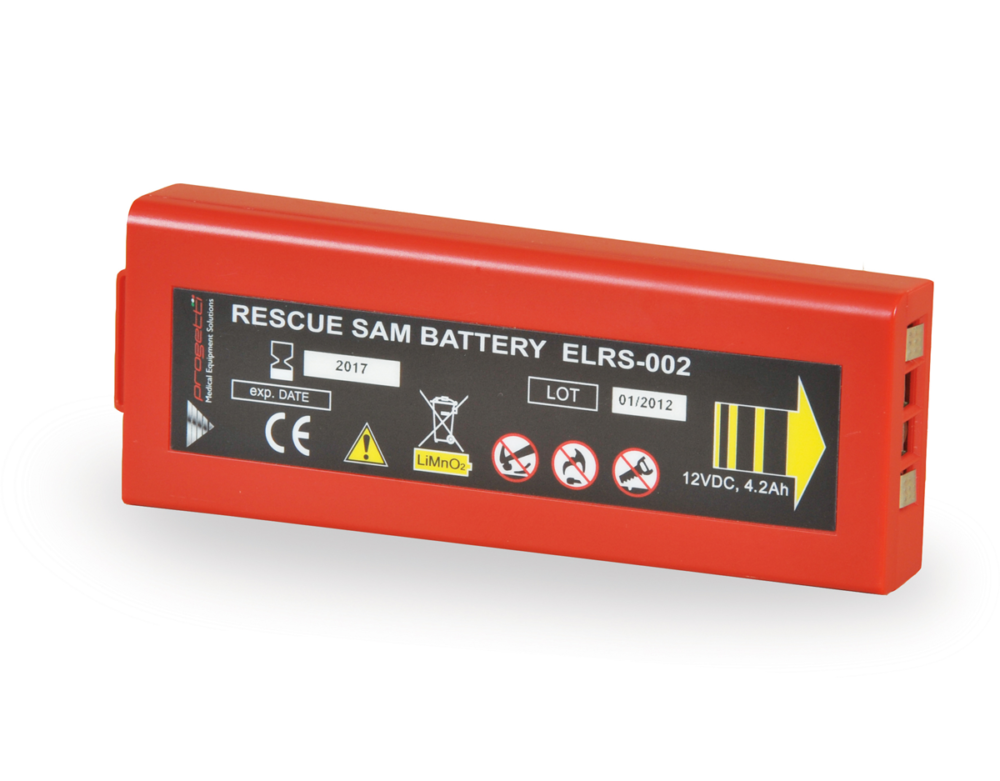

    Long life lithium battery: 12 Volt DC, 4.2 Ah, LiMnO2 disposable
    Battery capacity: 200 shocks or 4 hours of continuous operating time
    Data recording, stored: first 60 minutes of ECG and the entire incident’s event
    Size-weight: 30 x 28 x h 9 cm – 2.3 kg with battery
