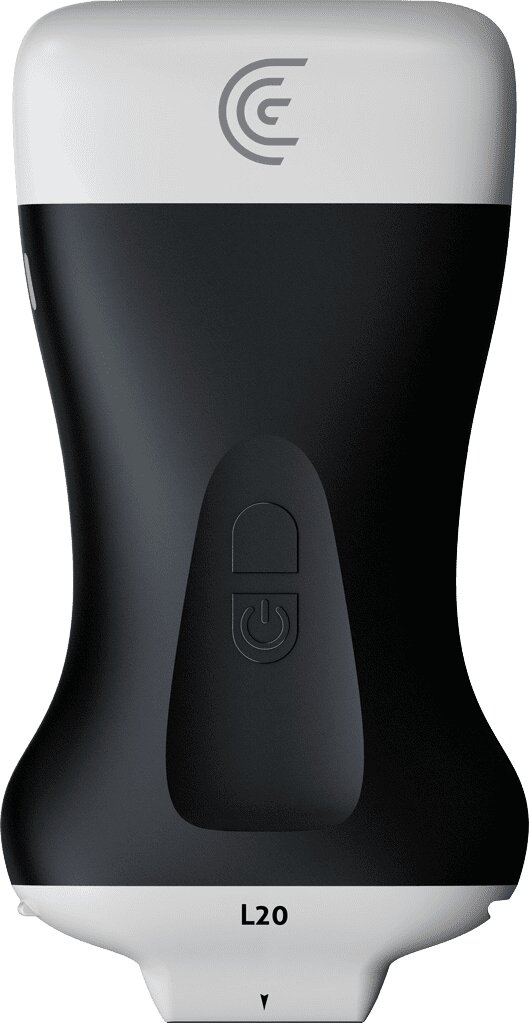

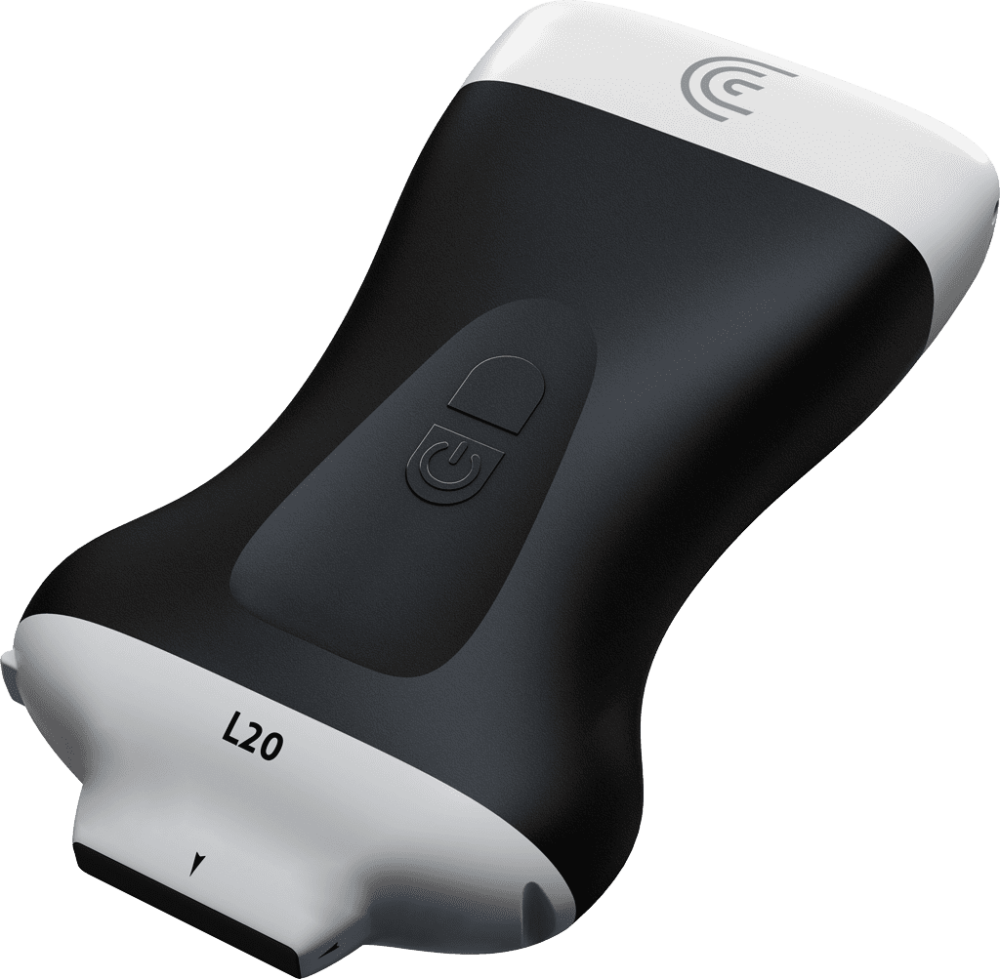

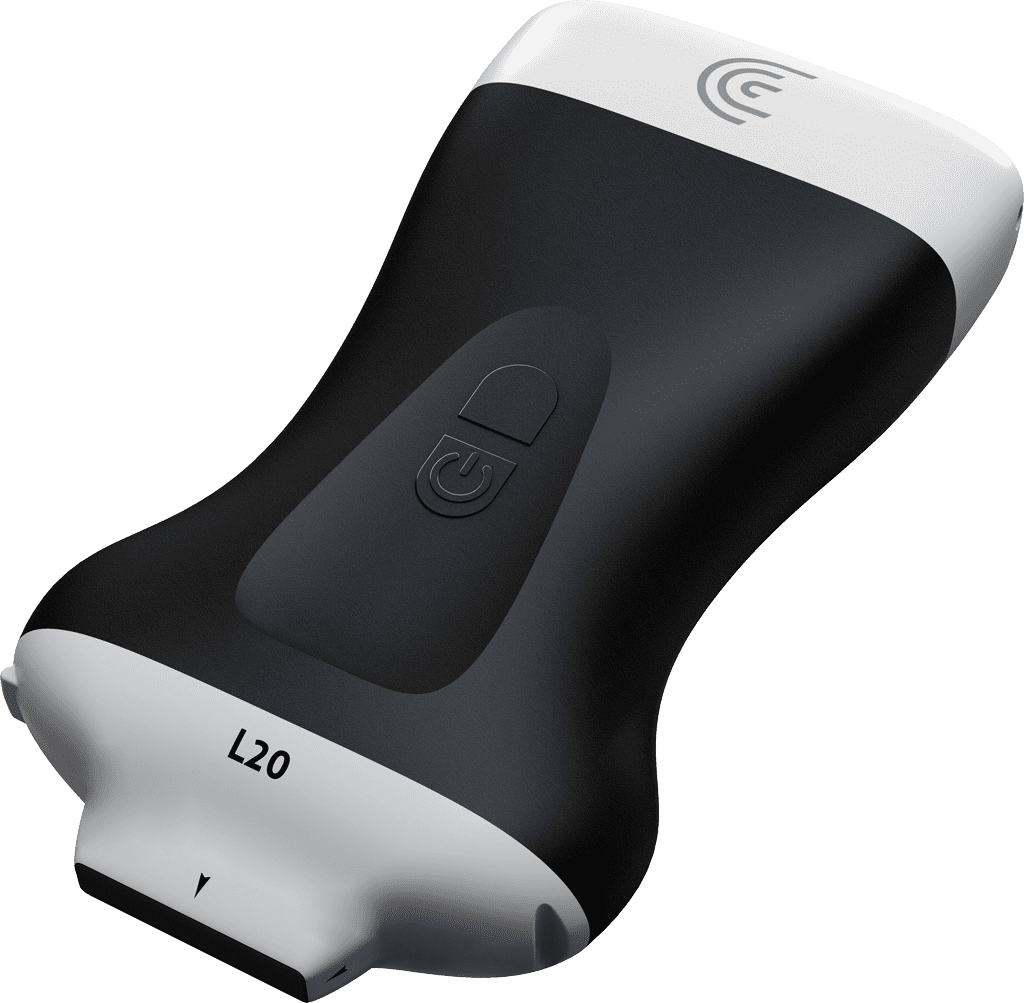

L20HD3 – Ultra Frequency Linear Scanner

  • High-Definition Imaging with 192 piezoelectric elements.
  • Wireless Freedom without cords, cleaning, and disinfection are simple and fast.
  • AI-Powered for Ease-to-Use automatically delivers the best imaging.
  • 30% Smaller & Light-weight
  • Frequency: 8 – 20 MHz
  • Max Depth: 4 cm
Brand

Clarius

Product Type

Scanner

Included

  • B-Mode
  • M-Mode
  • Color Doppler
  • Power Doppler
  • Unlimited Cloud Storage
  • 1 hour personal training
  • DICOM
  • Unlimited Cloud

Packages

  • Pulsed-Waved
  • Elastography
  • Needle Enhancement
  • Aesthetics Package

Applications

Ideal for:-

  • Anesthesia
  • Dermatology
  • MSK
  • Ophthalmology
  • Pediatrics
  • Plastic Surgery
  • Podiatry
  • Rheumatology
  • Small Parts
  • Vascular Access

Physical Characteristics:

  • Dimensions: 147 x 76 x 32mm (5.8 x 3.0 x 1.3in)
  • Weight: 290g (0.64lb)
  • Programmable Button: 2

Security and Encryption:

  • Wi-Fi data channel: TLS 1.2
  • Bluetooth: AES128 and RSA4096
  • Local Storage: Temporary
  • Cloud Storage: Yes with Membership or Advanced Software
  • DICOM: Yes with Membership or Advanced Software

Charging and Bootup:

  • Scan Time: ~60 min
  • Charge Time: ~90 min
  • Standby: ~7 days
  • Bootup: Platform dependent, generally < 30 seconds

Operating Range:

  • Ambient temperatures: between 0°C / 32°F and 40°C / 104°F
  • Relative Humidity: between 15% and 90%
  • Recommended maximum exam time: 20 minutes
