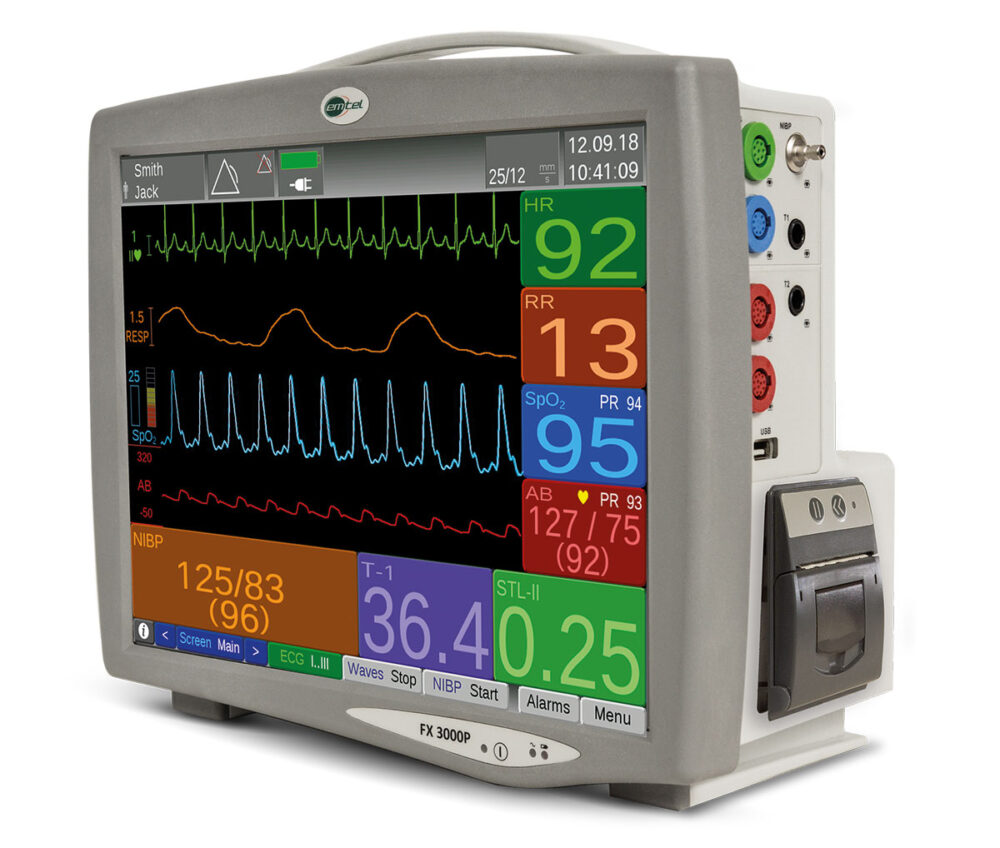

FX 3000P – Portable Patient Monitor

FX 3000P monitor is a small and light portable patient monitor with basic but also advanced measuring parameters at internal departments such as:

  • Pre-operative
  • Post-operative wards
  • Neonatal department
Product Type

Patient Monitor

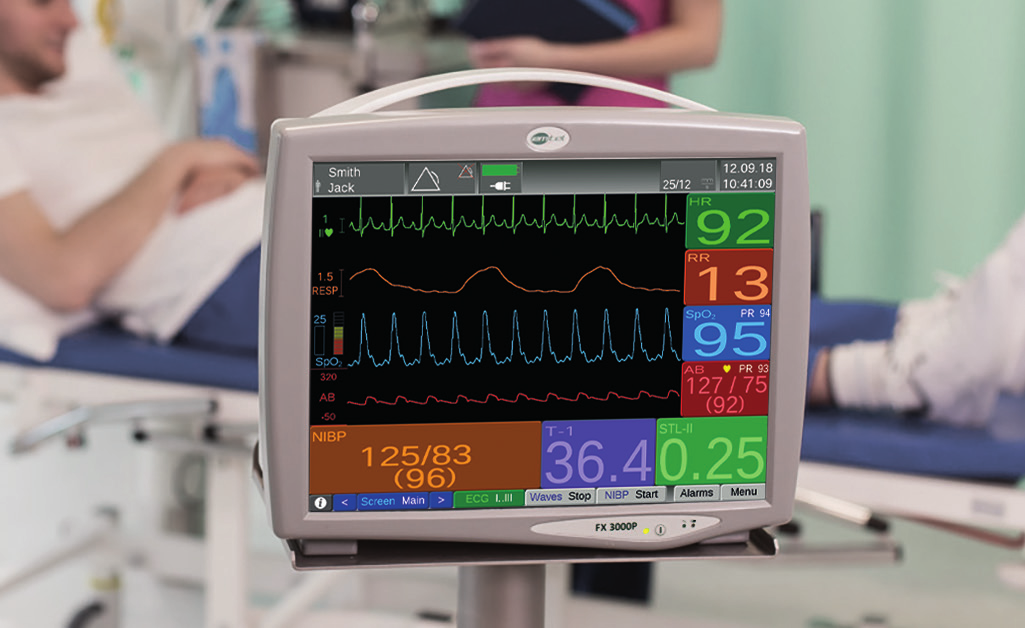

The compact construction and internal batteries allow the transportation of the monitor together with the patient inside a hospital.

FX 3000P can work as a separate device as well as a part of the FX 3000 Intensive Care Systems, in combination with FX 3000, FX 3000MD patient monitors, and FX 3000C central station.

FX 3000P ensures the monitoring and supervision of the following parameters:

  • ECG (limb and pre-cordial leads)
  • Respiration (rheographic method)
  • Arterial blood pressure NIBP (non-invasive method)
  • Arterial, venous blood pressure, and other IBPs (invasive method)
  • Pulse oximetry SpO2 (motion and low perfusion tolerant)
  • Carbon dioxide concentration ETCO2 in patients’ exhaled air
  • Temperature (in two measuring points and their difference)
  • Cardiac output (together with hemodynamic calculations)
  • ST analysis (slope and level)
  • ECG arrhythmia analysis (20 types optional)
  • Oxygen concentration in the gas mixture
  • Anesthetic gas concentration: N2O, ISO, ENF, HAL, SEV, DES
  • Pacemaker detection
  • Up to 12 waveform channels display

Additionally, if required by the customer, the following options are available:

  • Drug calculator
  • Thermal printer
  • Selectable waveforms sweep speeds
  • Archive
  • The interactive viewer of monitors screens connected together into a network
  • The ability of archive transfer and its viewing on a PC

The FX 3000P monitor provides alarm signaling in life-threatening cases when alarm limits of measuring parameters are exceeded as well as the storing of all monitoring parameters.

Owing to a big storage memory the FX 3000P monitors allow for storing and archiving information about treated patients and transmitting it to the central station and databases in other IT systems.
